A.2 Creating a Test Model

This example that walks you through creating a new Metamodel class and applying the class to a set of elements. It also shows you how to manually bind an element to the drawing.

A.2.1 Creating a New Metamodel Class and Elements

To create a new Metamodel class and elements that use this class:

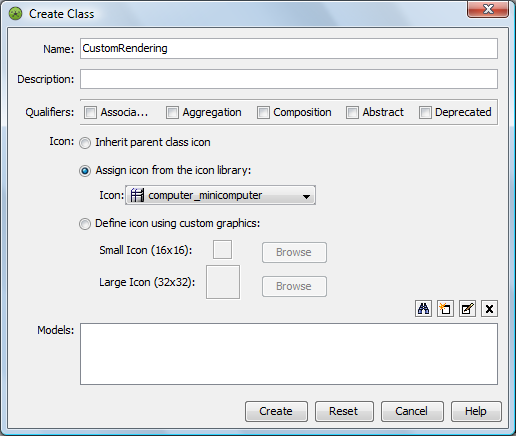

  1. In the Explorer pane, under Administration > Metamodel > Classes, create a new class named CustomRendering.

    This class does not require changing any Metamodel settings.

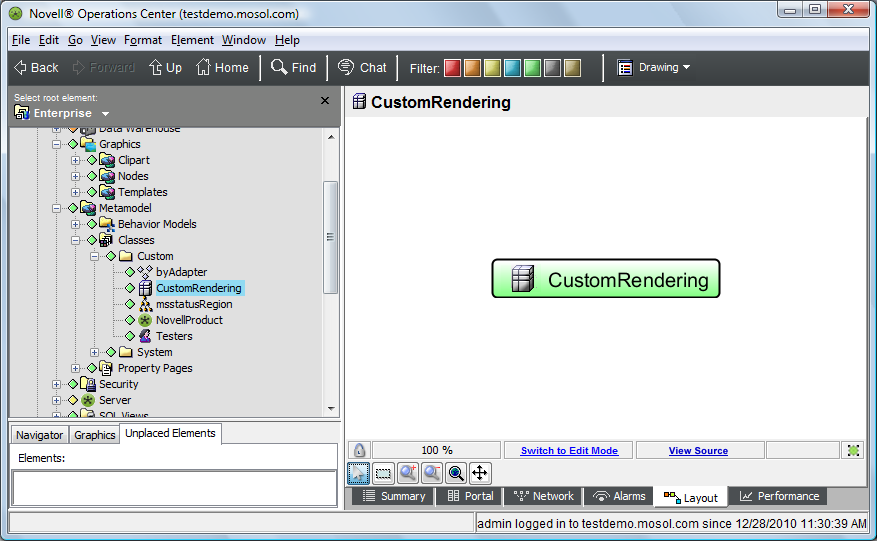

  2. Select this new class in the Explorer pane, then switch to the Layout view.

    The view should resemble the following:

  3. Create a new Service Model element named RenderingTesting.

  4. In the Explorer pane, select RenderingTesting.

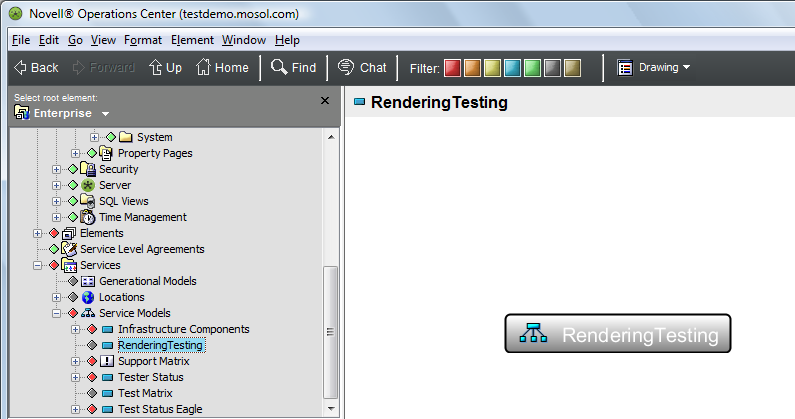

    Notice that the default node style used to represent the element is Gradient Bubble in the Layout view:

  5. Create three child elements under RenderingTesting named:

    • CustomChild1

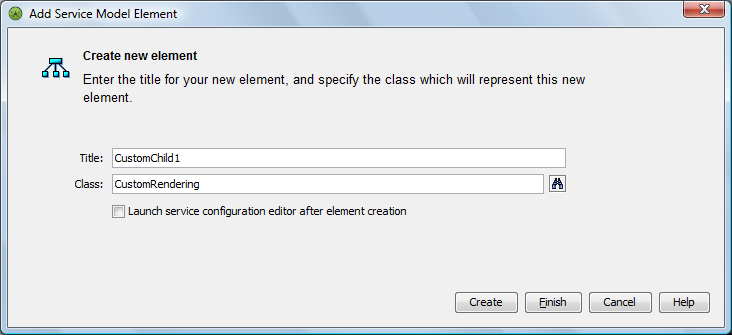

      In the Class field, select the custom class CustomRendering (defined earlier in Step 1):

    • CustomChild2

      In the Class field, select the custom class CustomRendering.

    • GenericOrgChild3

      In the Class field, leave the default Org class.

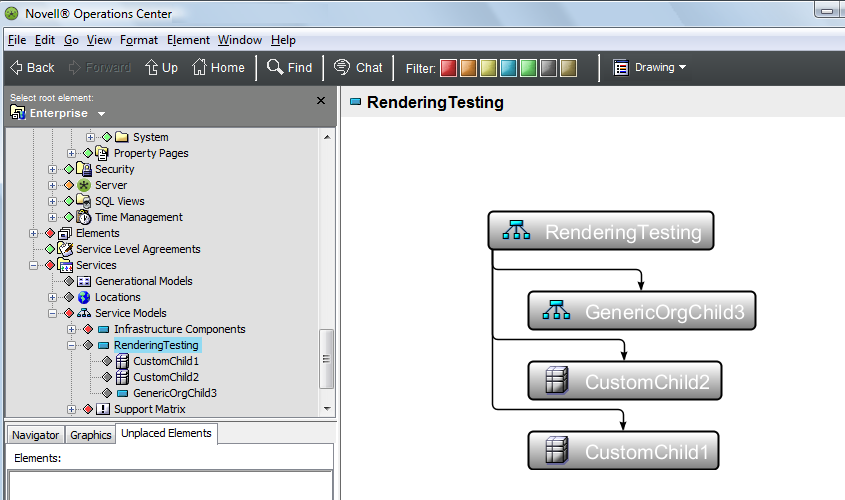

    The resulting Layout view should resemble the following:

A.2.2 Creating a Manually Bound Element in the Drawing

To create a manually bound element inside a drawing:

  1. In the Layout view, switch to Edit mode.

  2. Drag and drop CustomChild1 from the Explorer pane to the background of the drawing.

    Make sure you drop the element the background and not on any of the existing elements.

  3. Select Add to Drawing Only from the pop‑up menu.

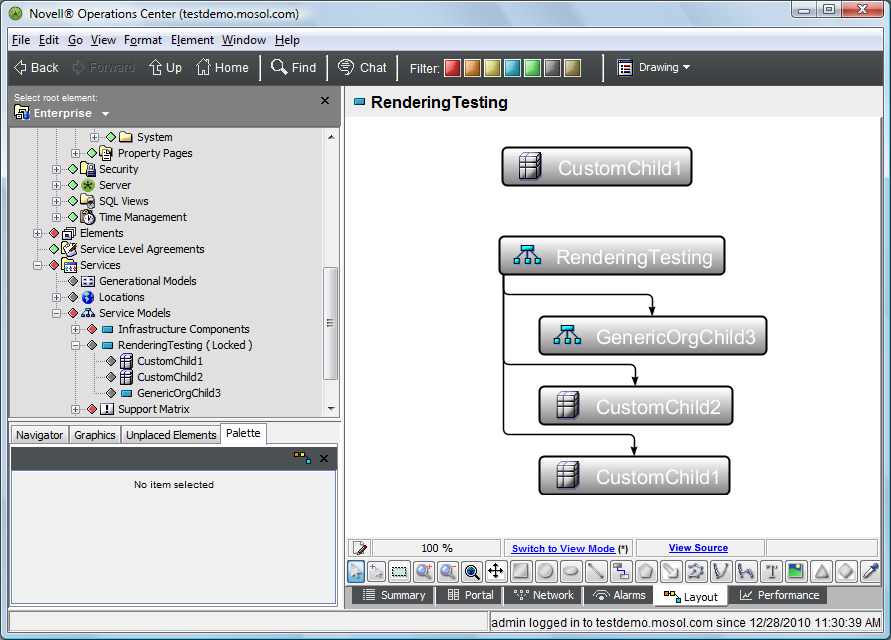

    The resulting drawing resembles the following:
