A.4 Creating Node Styles for Testing

To create node styles for testing, do the following:

  1. Under Administration > Graphics > Nodes, create a node style named RenderingTestAmbient.

  2. Edit the node style as follows:

    • Right-click the node style graphic, then select Ungroup.

    • Change the <default> text to AMBIENT.

    • Add a text label beneath the square and bind the label to the Element Name option.

    • Select everything in the drawing, then right-click Group.

    • Save the drawing.

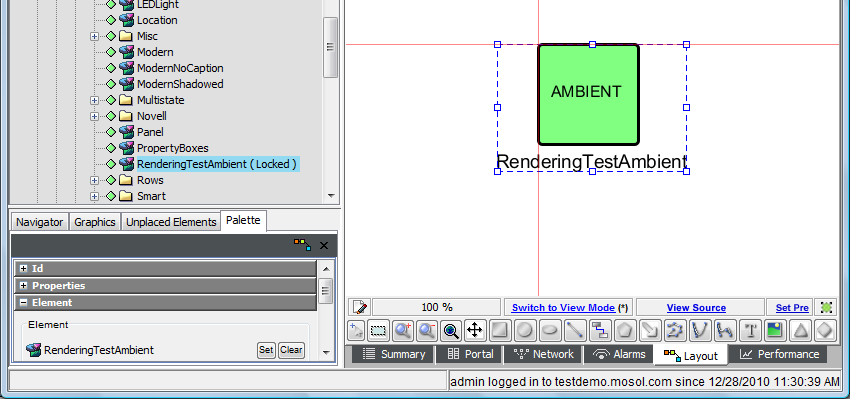

    The following illustrates the resulting drawing:

  3. Create a node style named RenderingTestClass and edit it as follows:

    1. Change the <default> text to CLASS.

    2. Add a text label beneath the square and bind that label to the Element Name option.

  4. Create a node style named RenderingTestElement and edit it as follows:

    1. Change the <default> text to ELEMENT.

    2. Add a text label beneath the square and bind that label to the Element Name option.

  5. Create a node style named RenderingTestOverride and edit it as follows:

    1. Change the <default> text to OVERRIDE.

    2. Add a text label beneath the square and bind that label to the Element Name option.

  6. Create a node style named RenderingTestSpecify and edit it as follows:

    1. Change the <default> text to SPECIFY.

    2. Add a text label beneath the square and bind that label to the Element Name option.
