1.3 Identity Validator 2.0 Architecture

Identity Validator 2.0 is a testing utility, that allows the user to easily connect to various systems and perform operations. It is a Single Page web Application (SPA) powered by an embedded Jetty HTTP Server listening on port 8380. Identity Validator 2.0 is a self-contained stand-alone product that requires no other software other than a supported operating system and browser.

Identity Validator 2.0 server is an embedded Jetty HTTP Server and uses Apache Jersey. It is launched via scripts from the command line. Once launched, the default URL to access Identity Validator 2.0 is:

https://< ip address>:<port >/validator

For example:

https://localhost:8380/validator

The client app is HTML and Javascript using Angular. It communicates with the Identity Validator 2.0 server via REST calls.

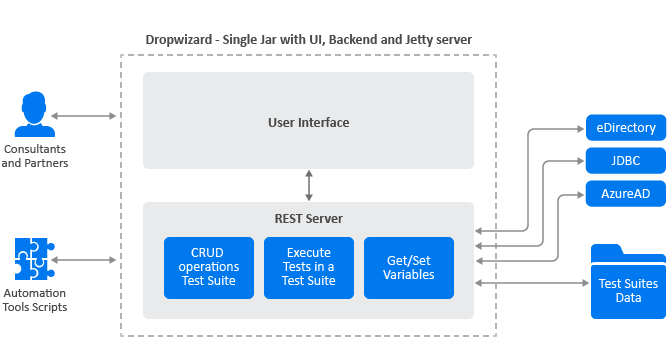

Figure 1-1 Identity Validator 2.0 Architecture Diagram
